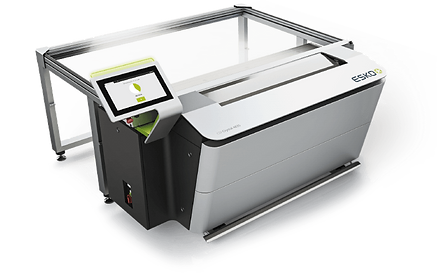

Esko CDi Crystal 4835

Type of imager:
External drum design
Cast Granite machine base
High Power Fiber Laser source, Laser Class 1 CDi

Imaging Quality:
Screen ruling up to 250 lpi, depending on imaging resolution
Halftone 1-99%
High Res Optics: fully variable from 2540 to 4000 ppi on job to job bae

Engine control:
Grapholas Touch Exposer on Intel PC with Windows 7
Automatic merging via Automation Engine in combination with “Flexo Plate Making Module for AE” or standard Merger (requires Intel PC with Windows 7)
Input file format: LEN or Tiff, compatible with all CDi family range

RIP & Screening:
Optional Imaging Engine
Industry standard Postscript/PDF RIP
Quality screening optimized for Flexo (Circular, Double Circular dots) included in the RIP)
HD Flexo Screening option for the finest print quality in Flexo
Pixel+ option for best in class ink transfer and SID’s in Flex0

ESKO Software:
Device manager, Automation Engine, Imaging Engine, Flexo Screening (HD Flexo, Pixel+, Crystal Screening), Equinox

All digital photopolymer plates
Usable plate thickness 0.76 – 3.94 mm

Plate sizes:
Sizes up to 1270 x 2032 mm
