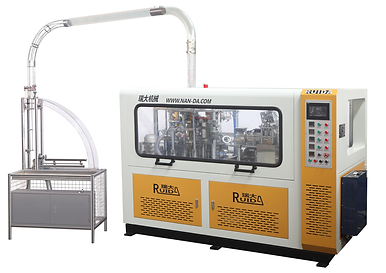

High Speed Paper Cup Machine

The High-Speed Paper cup machine comes with two turn plates, open intermittent indexing cam mechanism and gear transmission as well as longitudinal axis structures.

The whole machine uses an automatic lubrication system, which makes all mechanical parts continue to work smoothly. Cup body and bottom are sealed by a heated ultrasonic device.

Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance.

The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup collection.

Main technical parameter:-
Cup Use: Round Paper Cups, Drinking, Ice-cream etc.
Cup Volume: 6~16ounce 16~22ounce
Paper thickness: 210-380gsm
Output: 100 ~ 150 Cups Per Min.

Maximum Cup Dimension:-
Max. Top Diameter: 92mm
Max. Cup Height: 170mm
Max. Bottom Diameter: 65mm

Minimum Cup Dimension:-
Min. Top Diameter: 65mm
Min. Cup Height: 60mm
Min. Bottom Diameter: 50mm
